Pressure Vacuum Pv Valve Diagram

Pressure vacuum valve or pv valve in the ventilation system will prevent either over or under pressure.

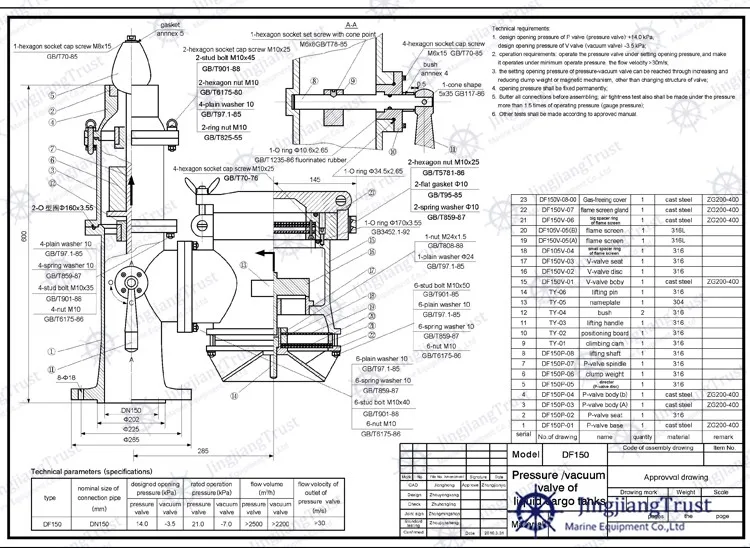

Pressure vacuum pv valve diagram. The breather valves are installed to reduce the continuous vapour loss to atmosphere through fixed vent nozzle to achieve the controlled losses with the set operating range of breather valve within the design pressure and vacuum parameters employed for the storage tanks. Pressure vacuum valves mostly refer as pv valve onboard the vessel. The electrical output of a vacuum pressure transducer is 0 vdc at 0 psiv 14 7 psia and full scale output typically 5 vdc at full scale vacuum 14 7 0 psia. We saw that pressure regulating valves serve the purpose of regulating pressure when it tends to go beyond certain limits on either side of the desired pressure spectrum.

Elmac technologies pressure vacuum relief valves have weight loaded or spring loaded pallets. Pressure vacuum valve or pv valve can relieve moderate changes in tank pressure due to variations in temperature and vapour quantity. The model 1200a pressure vacuum relief valve is designed to protect your tank from damage created by overpressure or excessive vacuum. Pv valves are used in tankers the name itself says that it deals with pressure and vacuum.

Emerson is where technology and engineering come together to create solutions for the benefit of our customers driven without compromise for a world in action. The saving in vapour loss is due to intermittent operation of breather valve. A drop towards vacuum conditions as the result of the condensation of steam will also be handled by the valve. Rapid pressure rise due to an explosion would not be relieved.

Costly product evaporation losses due to normal tank breathing are greatly reduced. As an additional safety measure there might be pressure vacuum breakers fitted in the lines which prevent the build up of excessive pressure and vacuum in case other systems. The vapour passes to atmosphere through a gauze flame trap. Pressure vacuum pv valves as the official repair center for pres vac engineering giantech seeks to assist pres vac engineering in providing after service support for their pv valves.

They are set usually so that tank pressure of about 0 14 bar will lift the main valve the smaller valve will lift along with it and release excess pressure. It is referred to as pounds per square inch vacuum or psiv. So let s answer all the wh questions regarding this topic. Vacuum pressure is measured relative to ambient atmospheric pressure.
